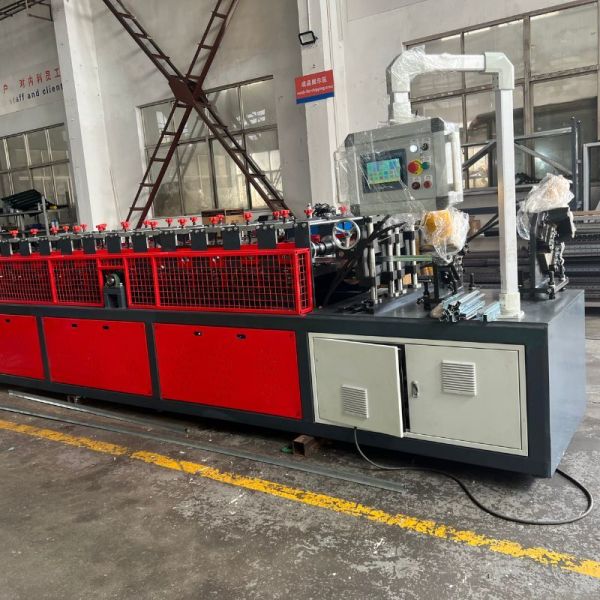

0.4-1.2mm Galvanized Steel 2 In One Furring Channel Ceilling Batten Roll Forming Machine

Name: 0412mm Galvanized Steel 2 In One Furring Channel Ceilling Batten Roll Forming Machine
Brand: Sussman
Price: 1 USD

Cheap 0.4-1.2mm Galvanized Steel 2 In One Furring Channel Ceilling Batten Roll Forming Machine for sale

Brand Name : Sussman

Model Number : SM-RM

Certification : SGS, ISO9001, CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60 days after deposit

Packaging Details : Standard packing

Material : 0.4-1.0MM PPGI GI Zinc Galvanized steel

Forming speed : 8-12m/min

Forming stations : About 12 stations / 12 stations

Weight : 4000kgs

Roller material : Gcr15 steel with quenching

Profile : two different hat channel sizes

Application : Roof ceiling, ceilling batten

Cutting : Hydraulic cutting

Contact Now

0.4-1.2mm Galvanized Steel 2 In One Furring Channel Ceilling Batten Roll Forming Machine

Hat channel machine also called omega machine, furring channel machine, roof battern machine, we can design the machine as your requirement.

The "2 in One" design means a single machine can produce both of these profiles with a quick and easy changeover, saving significant cost, floor space, and setup time compared to having two separate machines.

Technical parameter

Item	Technical data
Steel sheet thickness	0.4-1.0mm galvanized steel,PPGI,GI
Hydraulic power	4kw
Transmission way	chain driven
Capacity of Decoiler	3 Tons passive
Forming Speed	8-12m/min
Roller Groups	about 12 rollers with ribs
Roller Material	45# high grade steel, high frequency quenched HRC58-62
Roller Diameter	60mm
Principal Axis	45# high grade steel with quenching treatment
Main Motor Power	5.5 KW
Dimension	About 500011001500mm

Profile drawings

Furring channels are usually used in metal stud ceiling systems. They can be directly fixed with load bearing main carriers by screws, and can also be bound and fixed by iron wires or strings.

It’s convenient to install and they can be used in combination, which can satisfy different demands for ceiling systems or other home decorations.

0.4-1.2mm Galvanized Steel 2 In One Furring Channel Ceilling Batten Roll Forming Machine

Main Components

Machine name	Quantity
3T passive uncoiler	1 set
Main roll forming system	2 sets
Hydraulic stop cutting system	2 sets
4 meters out tables	1 set
PLC control box system	1 set
Toll box	1 package
Safety cover

Advantages of a 2-in-1 Machine

Cost-Effective: One machine does the job of two, offering a much better return on investment.
Saves Space: Requires significantly less factory floor space.
Operational Efficiency: One operator can run the entire line for both products.
Quick Changeover: Switching between profiles can often be done in 15minutes, allowing for flexible production scheduling to meet varying customer demands.
Consistent Quality: Automated production ensures every piece is identical, with high dimensional accuracy.

0.4-1.2mm Galvanized Steel 2 In One Furring Channel Ceilling Batten Roll Forming Machine

0.4-1.2mm Galvanized Steel 2 In One Furring Channel Ceilling Batten Roll Forming Machine Images
