0.3-0.8MM Pre-painted Metal Roofing Soffit Panel Roll Forming Machine

Brand Name : Sussman

Model Number : SM-ST

Certification : CE,SGS,ISO

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C

Supply Ability : 10 sets per months

Delivery Time : 60 days after deposit

Packaging Details : 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.

Forming Stations : About 20 rollers

Shaft material : #45 steel with heat treatment

Raw material : 0.3-0.8mm PPGI/Galvanized Sheet/ Aluminum

Power(w) : 7.5KW

Cutting blade material : cr12Mov with treatment 58-62

Weight : 3500kgs

Voltage : 380v/50 Hz

Use : Roof/wall

Contact Now

0.3-0.8MM Pre-painted Metal Roofing Soffit Panel Roll Forming Machine

Metal soffit panels are protective cladding materials installed beneath roof overhangs, eaves, and porch ceilings. Manufactured from galvanized steel, aluminum, or zinc-aluminum coated steel, these panels offer long-term durability, excellent corrosion resistance, and minimal maintenance requirements. Metal soffit systems are available in solid or vented designs: vented soffits promote proper attic airflow and help prevent moisture buildup, while solid panels create a clean, seamless finish for modern architectural styles. With a variety of profiles, textures, and color options, metal soffit panels not only protect the building structure but also enhance the overall aesthetic appeal of residential, commercial, and industrial projects.

Technical Parameter

Item NO

Description

Offered specification
1.1 Rolling speed 10-12m/min
1.2 Rolling thickness 0.4-0.8mm
1.3 Raw material Galvanized steel or PPGI or Aluminum
1.4 Main motor 7.5kw
1.5 Hydraulic motor 5.5kw
1.6 dimension About 7500×800×1000(mm)
1.7 Roller stations About 20 rollers
1.8 Roller material 45#forge steel, coated with chrome
1.9 Shaft diameter Φ75mm,material is 45# forge steel
1.10 Transmission By chain 1 inch
1.11 Material of chain 45# forged steel with frequency quenching, 12A
1.12 Material of cutting Cr12Mov with quench HRC58-62°
1.13 Tolerance 6m+-0.5mm
1.14 Frame H type steel
1.15 Voltage 380v, 50hz, 3phases or customized


Main Component

S.N

Equipment name

 Quantity
1.

3Tons manual un-coiler

 1 set
2.

Roll forming machine system

 1 set
3.

Hydraulic cutting

 1 set
4.

Control system (including control box)

 1 set
5.

Out tables

 2 sets












Working Flow

Decoiler----Feeding with guide---Roll forming---Cutting---Run out tables

Application

0.3-0.8MM Pre-painted Metal Roofing Soffit Panel Roll Forming Machine

0.3-0.8MM Pre-painted Metal Roofing Soffit Panel Roll Forming Machine

0.3-0.8MM Pre-painted Metal Roofing Soffit Panel Roll Forming Machine

0.3-0.8MM Pre-painted Metal Roofing Soffit Panel Roll Forming Machine0.3-0.8MM Pre-painted Metal Roofing Soffit Panel Roll Forming Machine

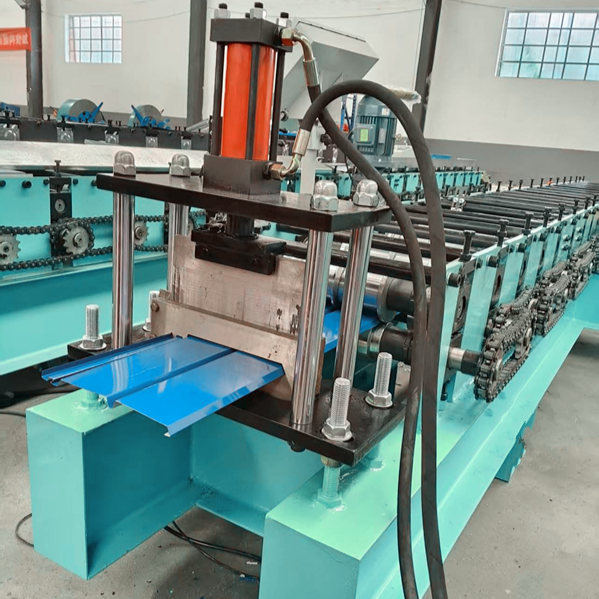

Cheap 0.3-0.8MM Pre-painted Metal Roofing Soffit Panel Roll Forming Machine for sale

0.3-0.8MM Pre-painted Metal Roofing Soffit Panel Roll Forming Machine Images
