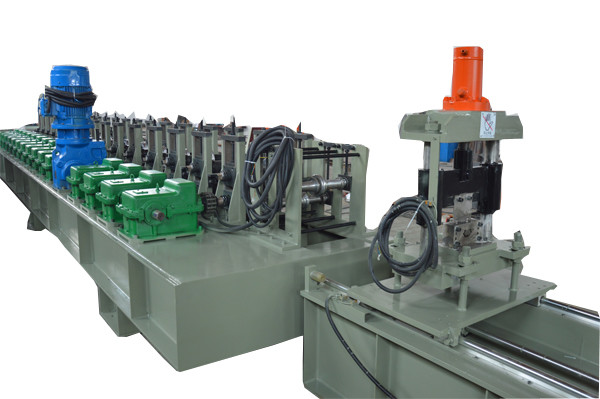

16 Stations Chain Drive Vineyard Post Making Machine With Hydraulic Cutting

Name: 16 Stations Chain Drive Vineyard Post Making Machine With Hydraulic Cutting
Brand: SUSSMAN
Price: 29999 USD

Cheap 16 Stations Chain Drive Vineyard Post Making Machine With Hydraulic Cutting for sale

Brand Name : SUSSMAN

Model Number : SS-VY

Certification : CE, SGS, ISO9001

Place of Origin : China

MOQ : 1 set

Price : USD29999-39999 per set

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60-90 working days after payment

Packaging Details : Standard package with film, plastic and steel wire. (or customized)

Material : 1.2-2mm Galvanized steel sheet G550

Forming stations : About 16 stations

Roller material : Gcr15, coated with chrome, Quenching

Shaft Material : 60mm , 45# forge steel

Transmission : 1.6 inch Chain

Material of cutting : Cr12Mov with quench HRC58-62°

Cutting Tolerance : 6m+-1.0mm

Type : Vinyard post roll forming machine

Cutting : Hydraulic Cutting Cr12mov

Working Speed : about 10 meters / min

Contact Now

16 Stations Chain Drive Vineyard Post Making Machine With Hydraulic Cutting

Technical Parameter

Item NO	Description	Offered specification
1.0	Roll forming machine
1.1	Rolling speed	2-3m/min
1.2	Rolling thickness	1.2-2mm
1.3	Raw material	Galvanized steel sheet G550
1.6	dimension	6500×600×1200(mm)
1.7	Effective width	50mm
1.8	Roller stations	About 16 stations
1.9	Roller material	Gcr15, coated with chrome, Quenching
1.10	Shaft diameter	Φ60mm ,material is 45# forge steel
1.11	Transmission	By Chain
1.12	Material of chain	45# forged steel with frequency quenching, 12A
1.13	Main Motor	7.5kw
1.14	Material of cutting	Cr12Mov with quench HRC58-62°
1.15	Cutting Tolerance	6m+-1.0mm
1.16	Voltage	220v, 60hz, 3phase

Main Components

No	Name	Type	quantity
1	2 ton double heads de-coiler	RF-VY	1 set
2	Hydraulic punching	RF-VY	1 set
3	Main roll forming machine	RF-VY	1 set
4	Control box	RF-VY	1 unit
5	Hydraulic station	RF-VY	1 unit
6	Cutting device	RF-VY	1 unit
7	Out tables	RF-VY	2 units

Double heads De-coiler

Diameter: 460-520mm expansion.

Expansion: manually

Capacity: 2000kg per mandrel/ 2000kg per mandrel

Max Coil Width: 500mm

Drag tension brake with variable brake tension adjustment valve

Working Flow

Uncoiling—Feeding with guide—hydraulic punching—Roll forming—cutting—Products collecting

16 Stations Chain Drive Vineyard Post Making Machine With Hydraulic Cutting

Profile Drawing

16 Stations Chain Drive Vineyard Post Making Machine With Hydraulic Cutting
